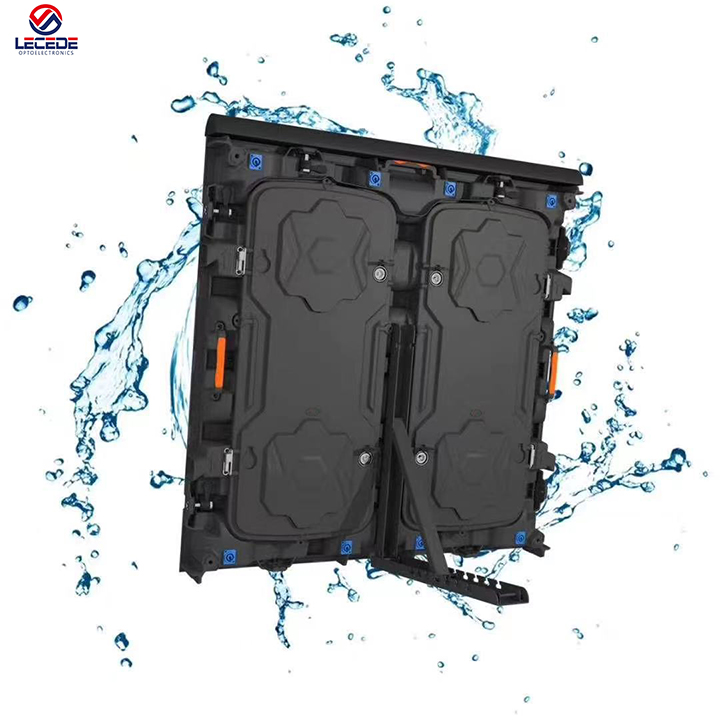

Sports Led Video Wall Panel Display Basketball Football Soccer P5 P6 P8 P10 Perimeter Advertising Led Stadium Screen
Pixel Pitch: P5 P6.67 P8 P10
Cabinet Material: magnesium aluminum / waterproof iron
Service method: Rear service
Brightness: 5500nit,8000nit,10000nit
Package: Wooden case or flight case
Product parameters
| ModeNo | W5 | W6.6 | W8 | W10 | |
| Module | Pixel Pitch (mm) | 5 | 6.67 | 8 | 10 |
| LED Type | SMD 2727 | SMD 3535 | SMD 3535 | SMD 3535 | |
| Module Dimension (W*H)(mm) | 320x 160 | 320x 160 | 320x 160 | 320x 160 | |
| Module Resolution (W*H)(Pixel) | 64x 32 | 48x 24 | 40x 20 | 32x 16 | |
| Pixel Density (PixeV m²) | 40000 | 22500 | 15625 | 10000 | |
| Scan Mode (S) | 8 | 6 | 5 | 2 | |
| Cabinet | Cabinet Dimension (W*H)(mm) | 960x 960 | 960x 960 | 960x 960 | 960x 960 |
| Cabinet Resolution (W*H)(Pixel | 192x192 | 144x144 | 120x 120 | 96x 96 | |
| Cabinet Material | Magnesium Alloyl/Waterproof Iron | ||||
| Cabinet Weight (Kg) | 25/30 | ||||
| Display | Best Viewing Distance (m) | 5 | 7 | 8 | 10 |
| Brightness (nits) | 5500-8000 | ||||
| Ingress Protection (Fron/Rear) | IP65 | ||||
| Viewing Angle | H:140°V:140° | ||||
| Color Temperature | 3200-9500K | ||||
| Gray Level | 14bit | ||||
| Max Power Consumption (W/m²) | 750 | 750 | 800 | 800 | |
| Average Power Consumption (W/m²) | 250 | 250 | 350 | 350 | |
| Refresh Rate (Hz | 1920-3840 | ||||
| Maintenance Method | Rear Maintenance | ||||
| Operating Temperature | -30℃-80℃ | ||||
| Operating Humidity | 10%-95%RH | ||||
| Input Voltage | AC110-220V±15%50-60Hz | ||||
| MTBF(Hours) | 50000 | ||||
| Life Time(Hours) | 100000 | ||||
Product description
The outdoor SD series
Features: iron box, cheaper than aluminum box, public mold, delivery time is better, many P have inventory, cost-effective
Maintenance: After maintenance, there needs to be a 60-80cm maintenance channel.
Heat dissipation: Because you want to do waterproof, heat dissipation capacity is not so good, the Middle East or very hot places should + air conditioning
Brightness: 5000-6000CD/sqm, brightness mainly depends on the equivalent chip size, the larger the size, the brighter the brightness
C series National Star copper wire 6000, National Star gold wire 8000,
Now it's P5, P6, P8
Power: The maximum power is 900W/sqm outdoors and 600W/sqm indoors.
The average power consumption is 1/3
Power consumption is expensive, such as Germany's electricity is particularly expensive, you can push the common Yin scheme
Common cathode solution: reduce power consumption and heat dissipation
Common negative power supply: double brush out, reduce heat dissipation, IC, power supply, lamp beads are not the same, mainly the power supply method is not the same.
