Custom Size Outdoor Waterproof Video Wall Fixed Installation P4 P6 P8 P10 led display screen for Roadside Advertising
C series outdoor screen
Aluminum cabinet
cabinet size:2x4ft,2x2ft,2x3ft or custom
Module size is 1x1ft
Package:Wooden case
Brightness:5500,8000,10000nit
waterproof rate:IP68
Lamp:Nationstar Gold Wire lamp/Nationstar Copper Wire Lamp
Certificates: UL,ETL,CCC,FCC,CE,ROHS
Front and back service
✅Showrooms, warehouses and offices in Houston, Las Vegas, USA.
Product parameters
| Model No. | C4 | C6 | C9 | |
| Module | Pixel Pitch(mm | 4.76 | 6.35 | 9.525 |
| LED TYpe | SMD 1921 | SMD 2727 | SMD 2727 | |
| Module Dimension(W*H)(ft) | 1x1(304.8mmx 304.8mm) | 1x1(304.8mmx 304.8mm) | 1x1(304.8mmx 304.8mm) | |
| Module Resolution(W*H)(Pixel) | 64x 64 | 48x 48 | 32x 32 | |
| Pixel Density(pixel/m²) | 44010 | 24800 | 11022 | |
| Scan Mode(S) | 8 | 6 | 2 | |
| Cabinet | Cabinet Dimension(W*H)(ft) | 2x4(609.6mmx 1219.2mm) | 2x4(609.6mmx 1219.2mm) | 2x4(609.6mmx 1219.2mm) |
| Cabinet Resolution(W*H)(Pixel) | 128x256 | 96x 192 | 64x 128 | |
| Cabinet Material | Aluminum Extrusion | |||
| Cabinet Weight(Kg) | 25 | |||
| Display | Best Viewing Distance(m) | 4.8 | 6.5 | 9.5 |
| Brightness(nits) | 6500-10000 | |||
| Ingress Protection(Fron/Rear) | IP68 | |||
| Viewing Angle | H:140°V:140° | |||
| Color Temperature | 3200-9500K | |||
| Gray Level | 14bit | |||
| Max Power Consumption(W/m²) | 450 | |||
| Average Power Consumption(W/m²) | 150 | |||
| Refresh Rate(Hz | 1920-3840 | |||
| Maintenance Method | Rear/Front Maintenance | |||
| Operating Temperature | -40℃-80℃ | |||
| Operating Humidity | 10%-95%RH | |||
| Input Voltage | AC110-220V±15%50-60Hz | |||
| MTBF(Hours) | 50000 | |||
| Life Time(Hours) | 100000 | |||
Product description
Main markets: United States and Canada; available in stock in the United States
Features: -40-80℃ (with) special power supply, high and low temperature testing
Average power consumption: 200W/m², common cathode solution; others are generally 400
Waterproof: IP68, air tightness test; ordinary IP65
Brightness: 8000-10000nit; ordinary 5000-7000
Mask: High brim design; improves contrast
Maintenance: Front and back maintenance, even if there is no space when signing
Material: magnesium aluminum bottom shell,
Size: 1ftX1ft set to install
Lamp beads: Nationstar (copper wire or gold wire)
Certificate: UL ETL CE RoHS FCC
Characteristics of the United States: The land is vast and sparsely populated, signboards are needed in front of business establishments, signboard culture is relatively popular, and the market is huge.
Customer requirements: stable, high brightness; mainly play pictures and text, only 3 cities can play video: Las Vegas, New York,

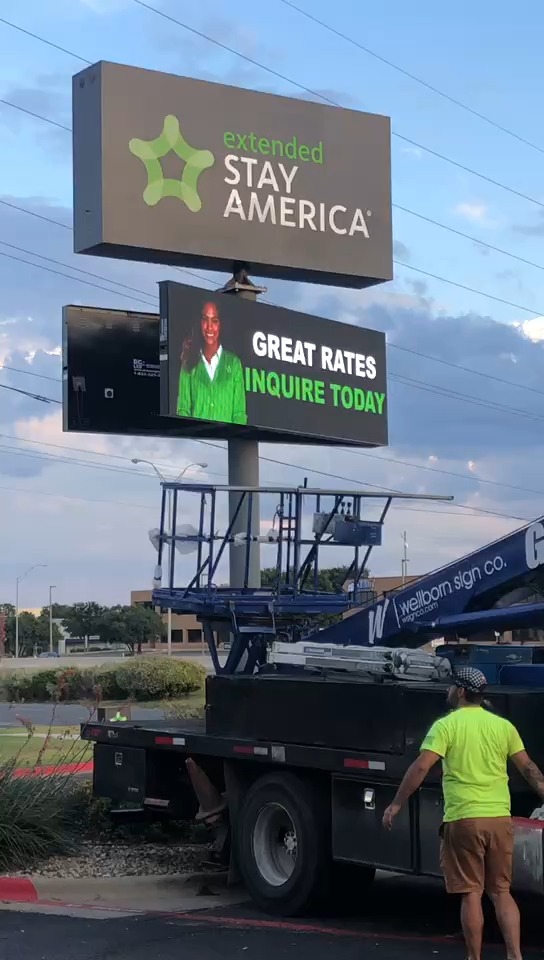

Main application areas: billboards, signboards, highways, stadiums, Home health agency private clinics, churches, 4S stores, American football, stores, schools,Roadside (American shopping malls, business centers, parks, street signs)
Size
Product display
Product application
