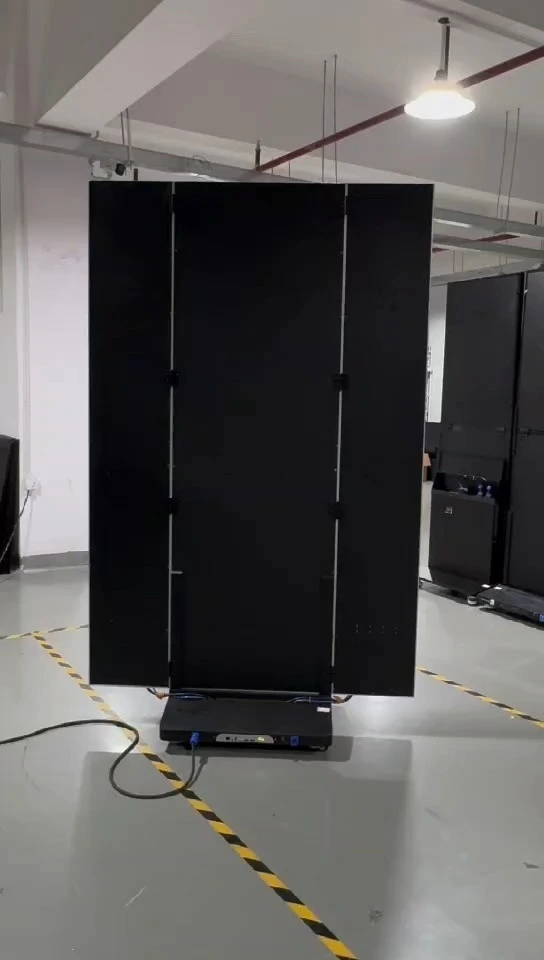

Unfold Big Impact Anywhere with Lecede’s Triple-Fold LED Display
The Lecede Triple-Fold LED Display is built for businesses that value flexibility and visual impact.
Its innovative three-fold design allows one person to set it up in seconds — no tools, no complex wiring, just plug and play.
With high-brightness LEDs and precise color calibration, your videos and ads remain vivid even under strong ambient light.
Supporting Wi-Fi, USB, and app-based control, the display makes content updates fast and convenient.
The slim, lightweight frame is easy to transport, making it perfect for retail promotions, exhibitions, product launches, and live events.
Key Features & Benefits:
-
Triple-fold portable design: Easy to carry and quick to install
-
Ultra-bright display: Delivers crystal-clear visuals indoors or outdoors
-
Smart control options: Update content via Wi-Fi, USB, or mobile app
-
Energy-efficient & silent operation: Ideal for commercial use
-
Versatile application: Perfect for retail, events, and brand activations
With Lecede’s Triple-Fold LED Display, you can transform any location into a dynamic, professional visual stage — anytime, anywhere.
Product parameters
| Project | HB-X2.5 | HB-X1.86 | HB-X1.53 | HB-X1.25 | |
| Pixel pacing | 2.5mm | 1.86mm | 1.538mm | 1.25mm | |
| Resolution ratio | 128*64 | 172*86 | 204*104 | 256“128 | |
| Module size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | |
| Protective technology | GOB | GOB | GOB | GOB | |
| Module weight | 0.55kg | 0.55kg | 0.55kg | 0.55kg | |
| Whole machine module composition(W*H) | (w)4(H)12 | (w)4(H)12 | (w)4(H)12 | (w)4(H)12 | |
| Single sided display resolution(W*H) | (w)512 (H)768px | (w)688(H)1032 px | (w)832 (H)1248px | (w)1024(H)1536PX | |
| Dual sided display resolution(W*H) | (w)256(H)768px | (w)344(H)1032px | (W)416 (H)1248pX | (w)512 (H)1536px | |
| Single sided display size | 1280*1920mm | 1280*1920mm | 1280*1920mm | 1280*1920mm | |
| Double sided display size | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm | |
| Single sided appearance dimensions | 1280*2070mm | 1280*2070mm | 1280*2070mm | 1280*2070mm | |
| Double sided appearance dimensions | 640*2070mm | 640*2070mm | 640*2070mm | 640*2070mm | |
| Gross weight of the machine | 78kg | 78kg | 78kg | 78kg | |
| Flatness tolerance | 0.5mm | 0.5mm | 0.5mm | 0.5mm | |
| White balanced brightness | 600CD | 650CD | 700CD | 750CD | |
| Gray scale | 14-16BT | 14-16BT | 14-16BT | 14-16BT | |
| Calor temperature | 3200-9000 | 3200-9000 | 3200-9000 | 3200-9000 | |
| Best visual distance | 3-20M | 3-20M | 3-20M | 3-20M | |
| Perspeclive (horizontal) | 160° | 160° | 160° | 160° | |
| Perspective (vertical) | 160° | 160° | 160° | 160° | |
| Tolerance of cenler to center distance of luminous point | 3% | ≤3% | ≤3% | ≤3% | |
| luminance uniformity | 95 | 95 | ≥95 | ≥95 | |
| Chromaticity uniformity | +0.003Cx,Cy | +0.003Cx,Cy | +0.003Cx,Cy | +0.003Cx,Cy | |
| Contrast ratio | 8000:1 | 8000:1 | 8000:1 | 8000:1 | |
| Power supply requirements | 100-240V | 100-240V | 100-240V | 100-240V | |
| Peak power consumption | 850W | 900W | 1200W | 1600VV | |
| Average power | 220W | 300W | 400W | 565WV | |
| Synchronous/Asynchronous | Support | ||||
| Communication method | App / USB Drive / Ethernet Port / 4G Remote APP / USBdrive / Ethernet port / 4G remote | ||||
| Interface | JJS485*1 WIFI*1 USB Drive*1 HDMI*2 | ||||
| ls there a built-in speaker | 50*12mm*2PCS | ||||
| Audio | 3.5 Audio Interface/Supports External Amplifier | ||||
| Drive mode | Constant current drive | ||||
| Frame frequency | 60HZ | ||||
| Refresh rate | ≥3840HZ | ||||
| Typical lifespan values | 50000H | ||||
| Working temperature range | -40-50℃ | ||||
| Operating humidity range | 10-80% | ||||
| Storage temperature range | -50-50RH | ||||
| Storage humidity range | 10-85%RH | ||||
Product description
Cabinet: Iron cabinet
Cabinet size: W1280 × H2070 × T50mm
Service method: Rear Service
Brightness: 600-700CD
Operation: Can be used separately or combined,WiFi,4G(Optional)
Usage place: Store,Exhibition,Rental store,Museums, exhibition halls, cinemas, shopping malls...
Advantage: Movable, it is easy to operation Wifi control, short delivery time, wide range of use. Complete set no need structure.
